Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 3 Years, 1 Year

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Construction WorksÂ , Energy & Mining

Customized Support: OEM, ODM

Gearing Arrangement: Worm

Output Torque: 15~1700Nm

Input Speed: 500~2800/min

Output Speed: 5~560/min

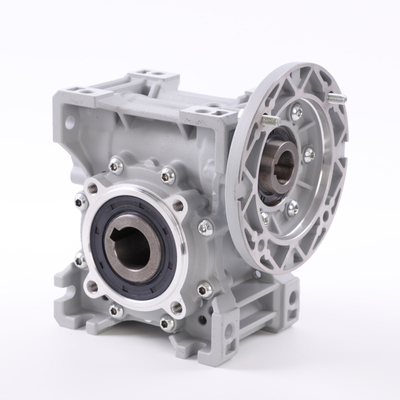

Product Name: Low Rpm Ac Worm Gear Motor Wholesale

Application: Food Stuff, Ceramics, Chemical, Packing, Dyeing,Wood Working, Glass.

Color: Blue(RAL5010)/Silver Grey (RAL9022) Or On Request

Ratio: 5,7.5,10,15,20,25,30,40,50,60,80,100.

Basic Infomation

Payment & Shipping Terms

Packaging Details: Transparent box packaging, or color box packaging, it also can be customized.

Supply Ability: 36000 Piece/Pieces per Month

Product Description

CLICK HERE FOR MORE DISCOUNT!

Products Description

Characteristics:
(1)Large output torque
(2) Safe, reliable, economical and durable
(3) Stable transmission, quiet operation
(4)High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio

Technical data:
(1) Iput power:0.06kw-15kw
(2) Output torque:4-2320N.M
(3) Speed ratio: 5/10/15/20/25/30/40/50/60/80/100
(4) With IEC input flange: 56B14/71B14/80B5/90B5…

Materials:
(1) NMRV025-NMRV090: Aluminium alloy housing
(2) NMRV110-150: Cast iron housing
(3) Bearing: NSK bearing & Homemade bearing
(4) Lubricant: Synthetic & Mineral

Color:
(1) Blue / Light blue
(2) Silvery White
Quality control
(1) Quality guarantee: 1 year
(2) Certificate of quality: ISO9001:2000
(3) Every product must be tested before sending

spectifications:
Detail model detail data(NMRV063-NMRV075/NMRV090):

Type	Worm Gear Speed Reducer / Gearbox / Reductor
Model	RV 25/30/40/50/63/75/90/110/130/150/185
Ratio	1:5/7.5/10/15/20/25/30/40/50/60/80/100
Input hole size	9MM、11MM、14MM、19MM、24MM、28MM、38MM、customized
Output hole size	11MM、14MM、18MM、25MM、28MM、35MM、42MM、45MM、50MM、customized
Color	Customized Color
Input flange	flange, large round flange, small round flange
Other accessories	Output flange, output shaft, torsion arm, etc
Packing	Carton, Honey Comb Carton, Wooden Case with Wooden Pallet
Usage	Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.
Flange	IEC standard flange or customized dimensions
Housing Material	Aluminum&Cast iron
Size	11 sizes(MRV25~MRV185)
Power	0.06~22 KW
Nominal torque	≤2548 N.m

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

Packing & Delivery
