Features

Specifications

Warranty: 3 Years, 1 Year

Applicable Industries: Building Material Shops

Customized Support: OEM, ODM, OBM

Gearing Arrangement: Worm

Output Torque: 2.6-1195N.M

Input Speed: 1450 Rpm

Output Speed: 14-280r/min

Bearing: C&U Bearing

Housing Material: Die-Cast Iron Cast

Gear Material: Cooper-10-3#

Installation Model: B3

Color: Blue(RAL5010)/Silver Grey (RAL9022)

Certificate: ISO9001

Keyword: Gearbox WPA

Certification: CE

Basic Infomation

Certification: ISO9001, CE

Model Number: B3

Payment & Shipping Terms

Packaging Details: carton or wooden case per set or based on customer's request.

Supply Ability: 1000 Set/Sets per Month

Product Description

Products Description

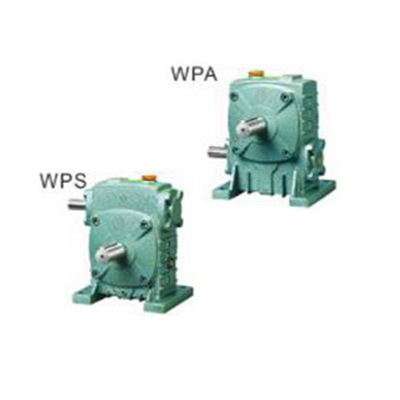

WP series reducer, worm is made of 45 # high quality steel by heat treatment, and worm wheel is cast with tin bronze. It has good wear resistance, especially in bearing capacity. It is mainly suitable for deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction and so on.

FEATURES

●Drive smoothly, vibration, impact and noise are small, deceleration ratio is large, versatility is wide, and can be used with a variety of mechanical equipment.
●Large transmission ratio can be obtained by single-stage transmission, and the structure is compact. Most types of reducers have better self-locking performance. Braking devices can be saved for mechanical equipment with braking requirements.
●The meshing friction loss between worm tooth and worm gear tooth surface is larger, so the transmission efficiency is lower than that of gear, easy to heat and high temperature.
●Higher requirements for lubrication and cooling.
●Good compatibility, worm gear and worm are manufactured according to national standards, bearing, oil seal and other standard parts are used.
