Features

Specifications

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction WorksÂ , Energy & Mining, Food & Bevera

Gearing Arrangement: Helical

Output Torque: 3.5~21700N.m

Input Speed: 1450/960rpm

Output Speed: 14-280rpm

Ratio: 3.77~276.77

Certification: ISO9001-2008

Mount Position: Foot Mounted

Bearing: C&U,LYC, HRB,ZWZ,NSK

Basic Infomation

Certification: ISO9001-2008

Payment & Shipping Terms

Packaging Details: Wooden boxes , Cantons packed in 1 pallet

Product Description

Products Description

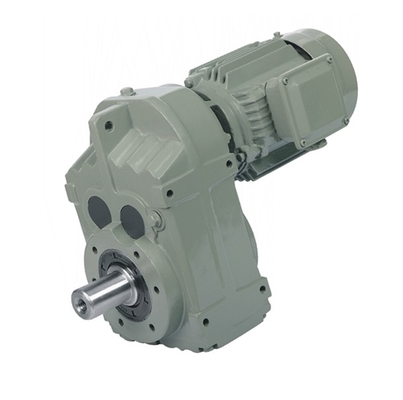

F series parallel helical gear reducer gearbox for conveyor is one kind of parallel shaft helical gear reducer , which consist of 2 or 3 stages helical gears (relate to gear ratio) in the same case . The hard tooth surface gear use the high quality alloy steel ,the process of carburizing and quenching, grinding ,which give it follow characters :Stable transmission ,low noise and temperature ,high loading ,long working lift . Wide application ,specialize in Metallurgy ,Sewage treatment,
Chemical Industry , pharmacy, agriculture equipment and oil industry.
1) Output speed: 0.6~1,028r/min
2) Output torque: up to 21700N.m
3) Motor power: 0.12~200kW
4) Mounted form: foot-mounted and flange-mounted mounting

Specifications:

1) Output speed: 0.6~1,028r/min

2) Output torque: up to 21700N.m

3) Motor power: 0.12~200kW

4) Mounted form: foot-mounted and flange-mounted mounting

Gear Material	20CrMnTi
Case Material	HT250
Shaft Material	20CrMnTi
Gear Processing	Grinding finish by HOFLER Grinding Machines
Lubricating oil	Shell Omala synthetic oil or mineral oil , or similar brand
Brand of bearings	C&U bearing, ZWZ,LYC, HRB, SKF,NSK and so on
Brand of oil seal	NAK or other brand

Company Profile

Quality Control

Packing & Delivery

Packing Details: Standard carton/Pallet/Standard wooden case
Delivery Details : 15-30 working days upon payment

Certifications

FAQ

1.Payment Term: TT, L/C

2.Delivery time: about 30 days from receive payment.

3.We accept customized products as per your special requirement.

4.Guidelines for the Selection:Usually we can select one machine which is suitable for you with some informations from you,such as
ratio/motor speed/mounting dimension/ out torque etc.

5.If the minimum order amount is in excess of $10000, there are preferential.

Q1: What information should I tell you to confirm the product?
A:Model/Size, Transmission Ratio, Shaft directions & Order quantity.

Q2: What can i do if I don't know which one I need?
A:Dont worry, Send as much information as you can, our team will help you find the right one you are looking for.

Q3: What is your product warranty period?
A:We offer one year warranty since the vessel departure date left China.

Q4: Are you trading company or manufacturer ?
A: We are factory.

Q5: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q6: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q7: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below:
